Secondary standards in the UKIRT faint standard fields

Data summary

Precise J- and K-band photometric measurements for 128 near-infrared secondary standard stars located in 19 UKIRT/MKO primary faint standard fields. The data, collected over more than 50 nights at the ESO La Silla Observatory using the NTT/SOFI camera, are calibrated onto the MKO system. Magnitudes range from 10 to 15.8 mag with a precision better than 0.01 mag for all stars.

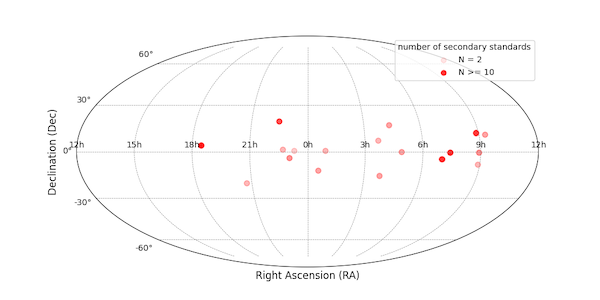

Location of the 19 secondary standard fields

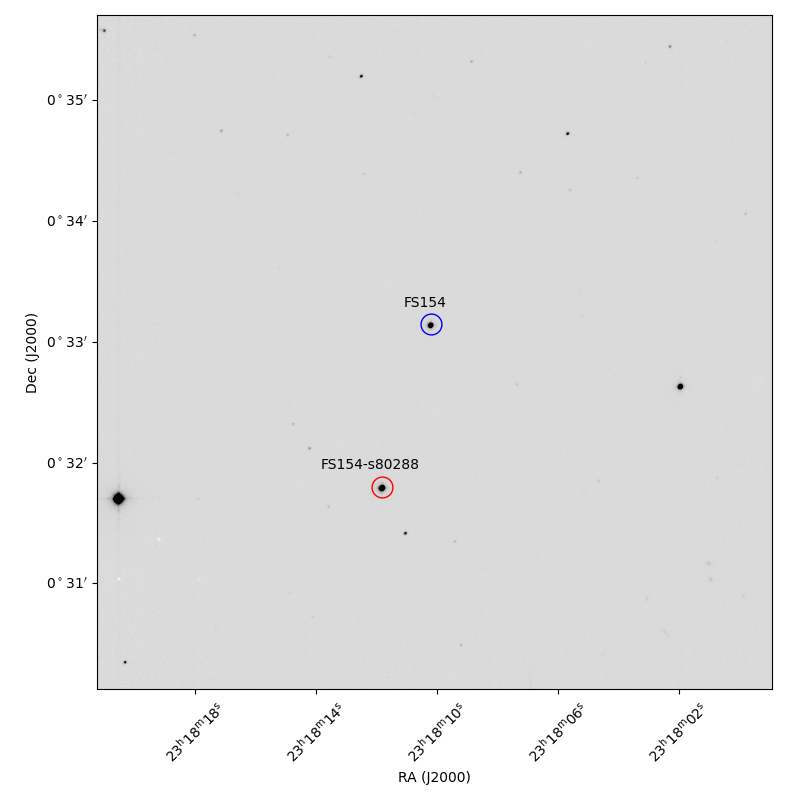

Finding charts are provided for each field, showing the locations of the primary standard (blue circle) and the secondary standards (red circles) with their corresponding names.

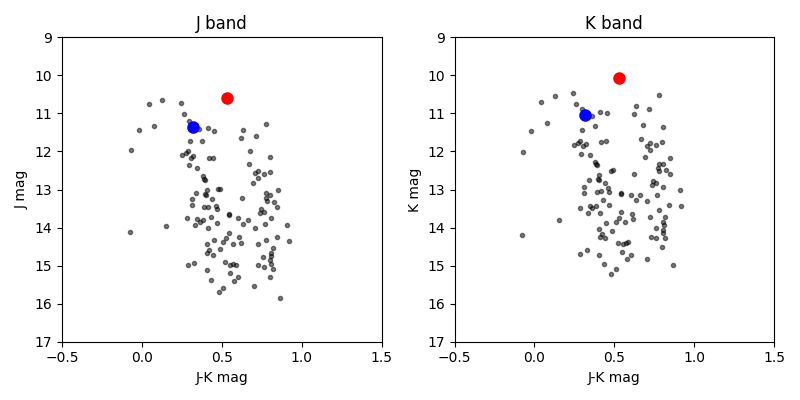

Color–magnitude diagrams (J and K versus J–K) are also included. In each diagram, all secondary standards defined in this work are plotted as black points, while the primary and secondary standards for the specific field are highlighted in blue and red, respectively.

For every field, we include a table listing the star names, ICRS coordinates (RA/Dec), J- and K-band magnitudes calibrated to the MKO system, their uncertainties, number of observing epochs, and Gaia identifiers.

Fields

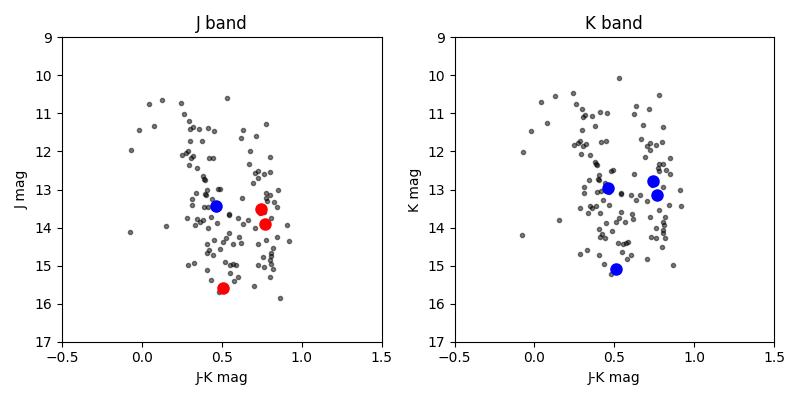

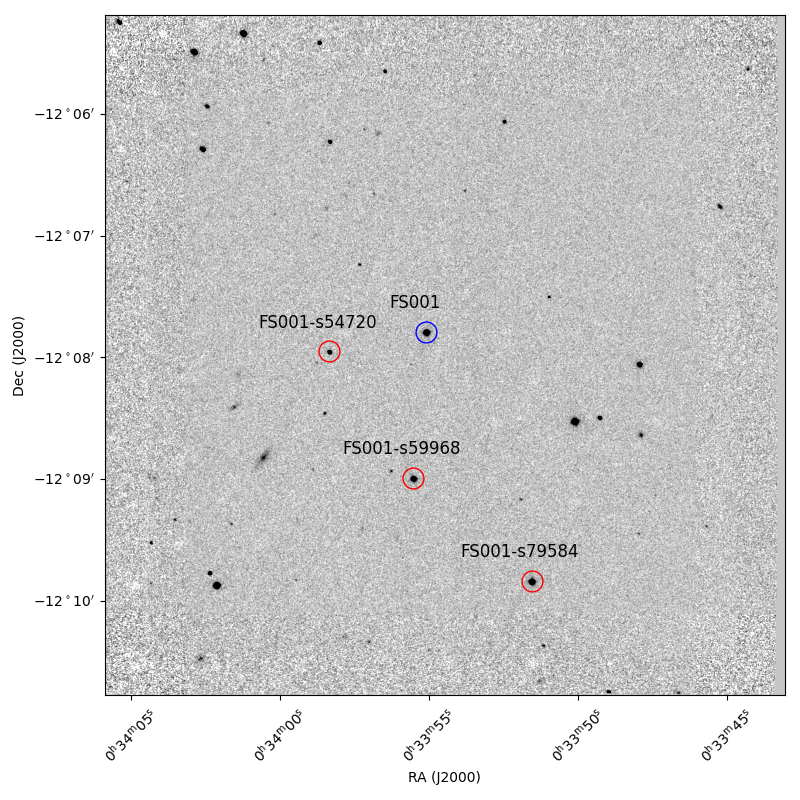

FS001

name	ra	dec	J	err_J	epochs_J	K	err_K	epochs_K	GAIA_id
FS001	0:33:54.46	-12:07:58.78	13.432	0.003	17	12.969	0.004	17	2375647158466154112
FS001-s79584	0:33:51.05	-12:10:03.71	13.524	0.004	14	12.779	0.003	14	2375643688132579584
FS001-s59968	0:33:55.04	-12:09:13.14	13.915	0.003	17	13.146	0.004	17	2375643821276259968
FS001-s54720	0:33:57.86	-12:08:10.88	15.594	0.003	17	15.085	0.01	17	2375644203528654720

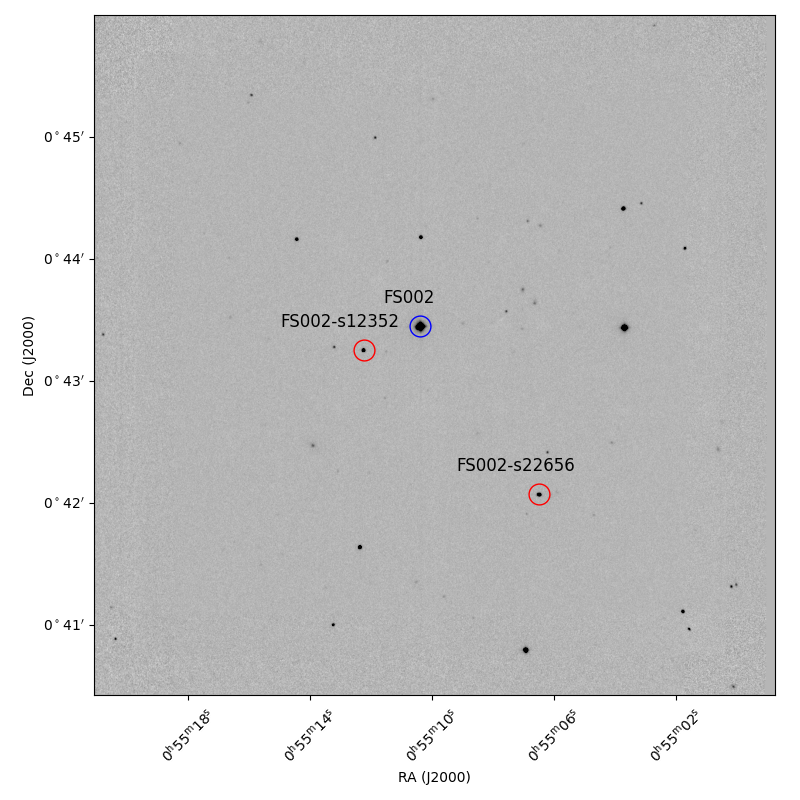

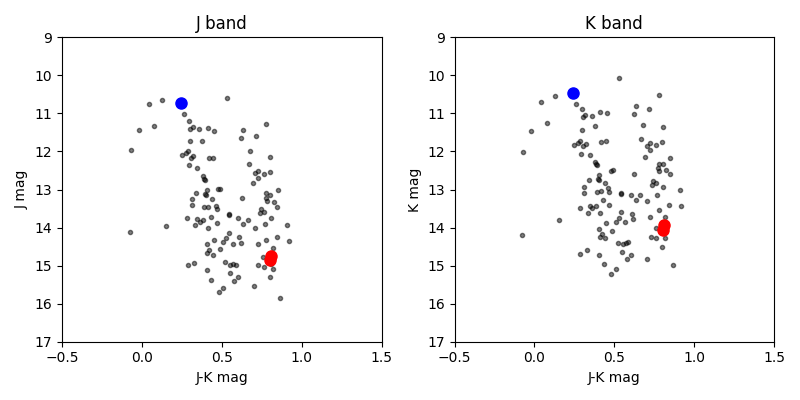

FS002

name	ra	dec	J	err_J	epochs_J	K	err_K	epochs_K	GAIA_id
FS002	0:55:09.91	0:43:12.92	10.716	0.003	7	10.472	0.004	7	2537314812728975744
FS002-s22656	0:55:06.00	0:41:50.29	14.746	0.006	7	13.936	0.006	7	2537314675290022656
FS002-s12352	0:55:11.75	0:43:01.25	14.862	0.006	7	14.059	0.005	7	2537314808433812352

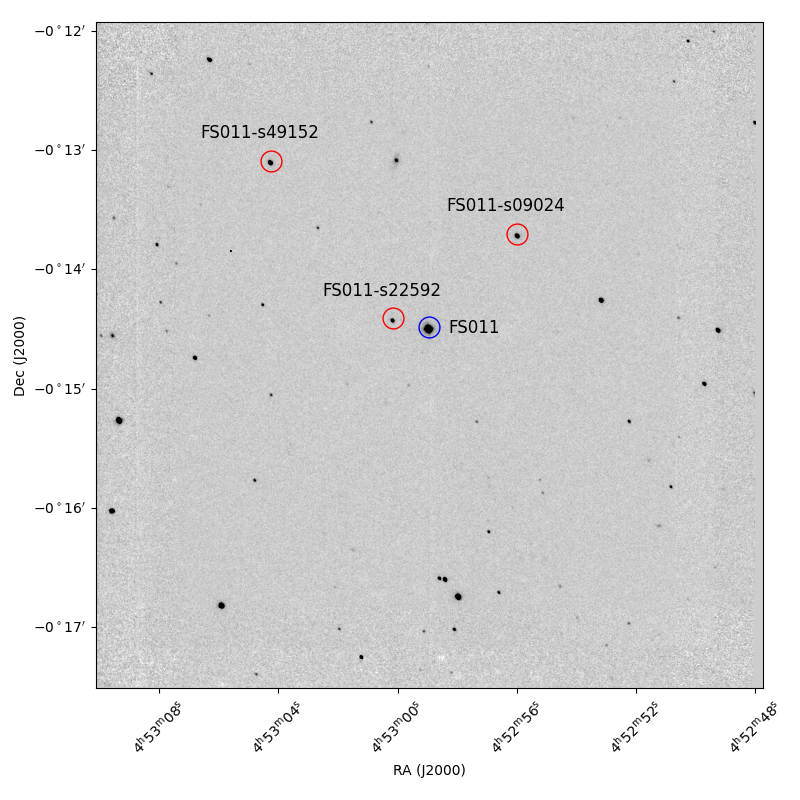

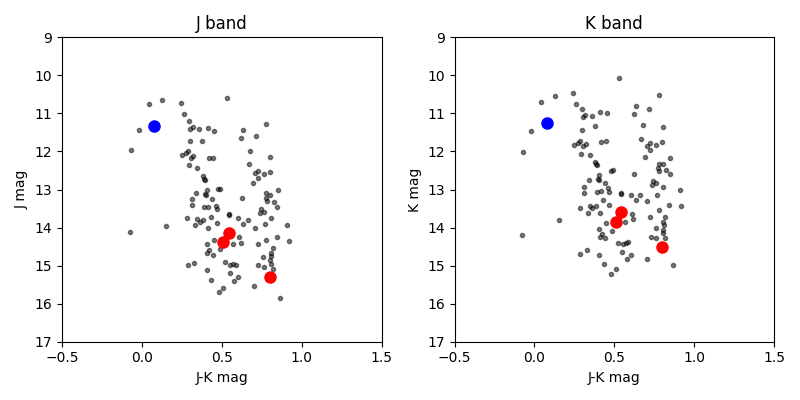

FS011

name	ra	dec	J	err_J	epochs_J	K	err_K	epochs_K	GAIA_id
FS011	4:52:58.86	-0:14:41.17	11.336	0.005	10	11.26	0.004	10	3226810514329499648
FS011-s09024	4:52:55.88	-0:13:54.39	14.13	0.01	10	13.585	0.01	10	3226810720487809024
FS011-s49152	4:53:04.16	-0:13:17.76	14.373	0.008	9	13.865	0.006	9	3226810651768449152
FS011-s22592	4:53:00.06	-0:14:36.98	15.309	0.009	10	14.51	0.009	10	3226810510033822592

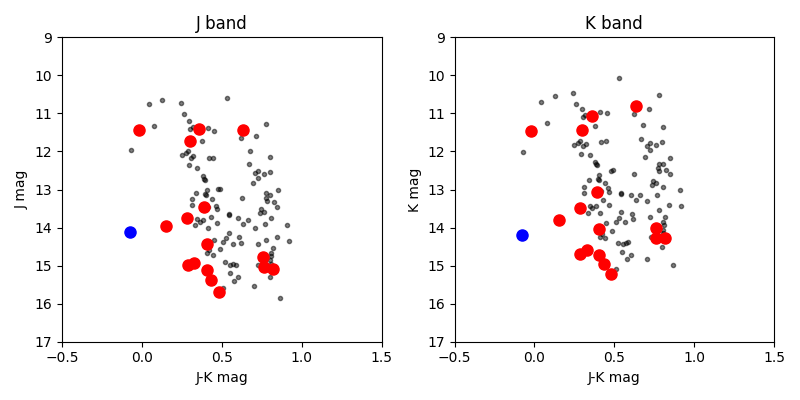

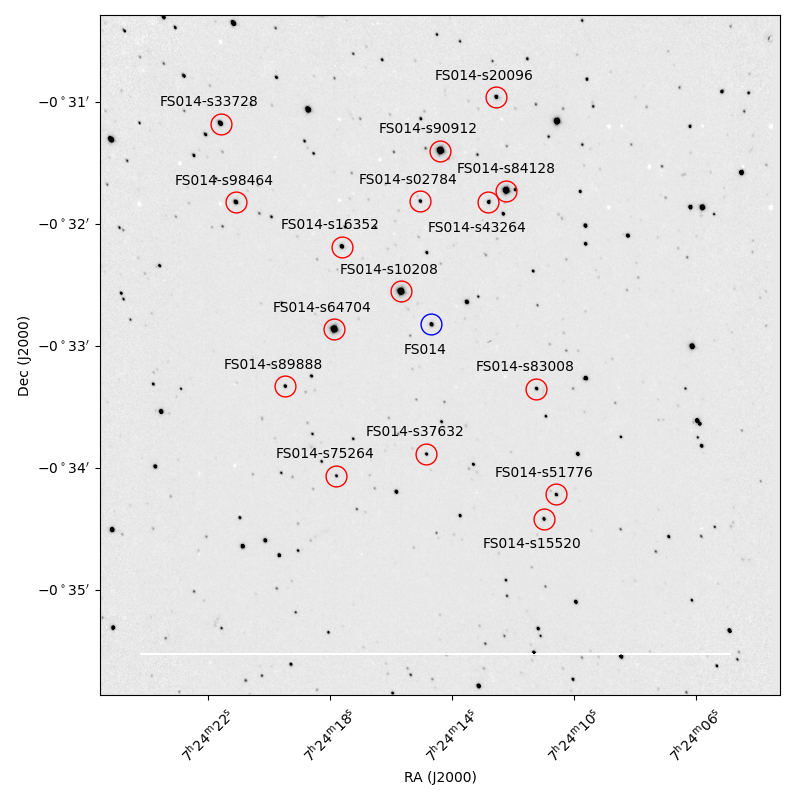

FS014

name	ra	dec	J	err_J	epochs_J	K	err_K	epochs_K	GAIA_id
FS014-s90912	7:24:14.08	-0:31:38.68	11.442	0.007	13	10.808	0.007	13	3110405355740790912
FS014-s10208	7:24:15.38	-0:32:47.84	11.443	0.007	13	11.463	0.005	13	3110405183942110208
FS014-s64704	7:24:17.57	-0:33:06.18	11.415	0.006	13	11.055	0.005	13	3110404428027864704
FS014-s84128	7:24:11.93	-0:31:58.12	11.731	0.009	13	11.43	0.006	13	3110405252661584128
FS014-s33728	7:24:21.29	-0:31:25.28	13.462	0.007	13	13.072	0.006	13	3110405321381033728
FS014-s98464	7:24:20.78	-0:32:03.99	13.76	0.007	13	13.475	0.007	13	3110404565466798464
FS014-s16352	7:24:17.32	-0:32:25.83	13.957	0.007	13	13.805	0.008	13	3110405287021316352
FS014	7:24:14.37	-0:33:04.16	14.12	0.006	13	14.195	0.005	13	3110404393668131712
FS014-s20096	7:24:12.25	-0:31:12.40	14.441	0.008	13	14.035	0.01	13	3110405561899220096
FS014-s43264	7:24:12.51	-0:32:03.95	14.776	0.009	13	14.015	0.007	13	3110405248362843264
FS014-s89888	7:24:19.19	-0:33:34.35	15.036	0.006	13	14.272	0.006	13	3110404359308389888
FS014-s83008	7:24:10.93	-0:33:35.80	14.979	0.008	13	14.693	0.009	13	3110381681881083008
FS014-s15520	7:24:10.70	-0:34:39.83	14.929	0.007	13	14.602	0.008	13	3110380891607115520
FS014-s02784	7:24:14.74	-0:32:03.54	15.114	0.006	13	14.709	0.01	13	3110405183942102784
FS014-s51776	7:24:10.30	-0:34:28.00	15.094	0.006	13	14.276	0.01	13	3110380887308251776
FS014-s37632	7:24:14.54	-0:34:07.91	15.388	0.008	13	14.955	0.009	13	3110380925966837632
FS014-s75264	7:24:17.49	-0:34:18.50	15.696	0.01	13	15.216	0.007	13	3110404324950075264

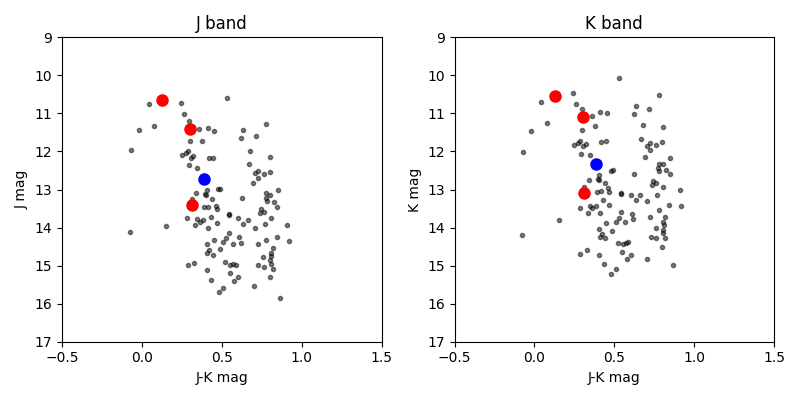

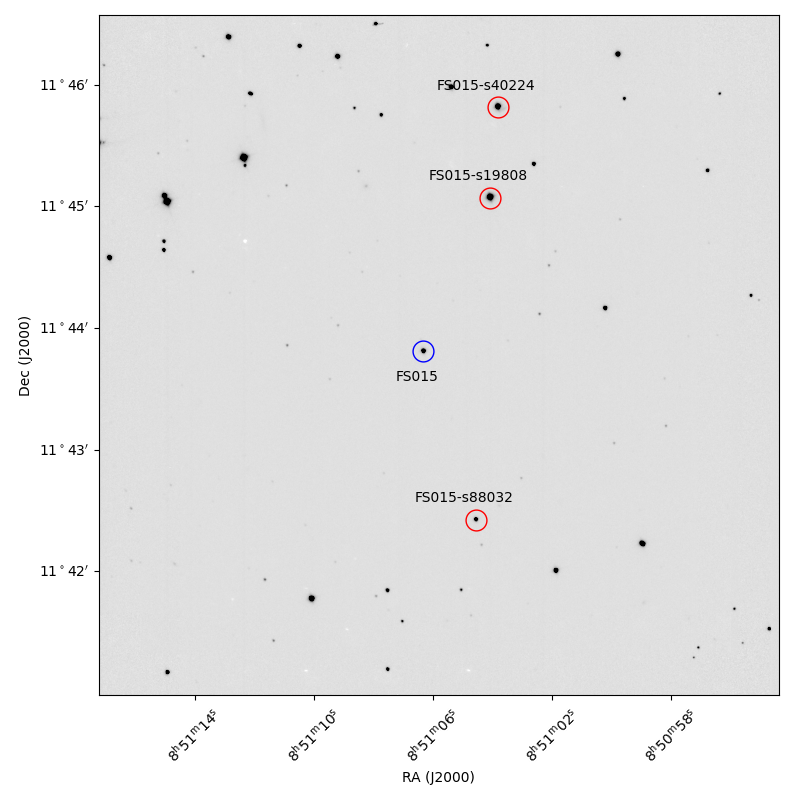

FS015

name	ra	dec	J	err_J	epochs_J	K	err_K	epochs_K	GAIA_id
FS015-s19808	8:51:03.51	11:45:02.82	10.658	0.008	6	10.53	0.005	6	604911135364519808
FS015-s40224	8:51:03.26	11:45:47.41	11.409	0.008	5	11.105	0.003	5	604914468259140224
FS015	8:51:05.76	11:43:46.97	12.722	0.01	6	12.336	0.008	6	604910860486613632
FS015-s88032	8:51:03.99	11:42:23.95	13.408	0.01	6	13.097	0.007	6	604910654328188032

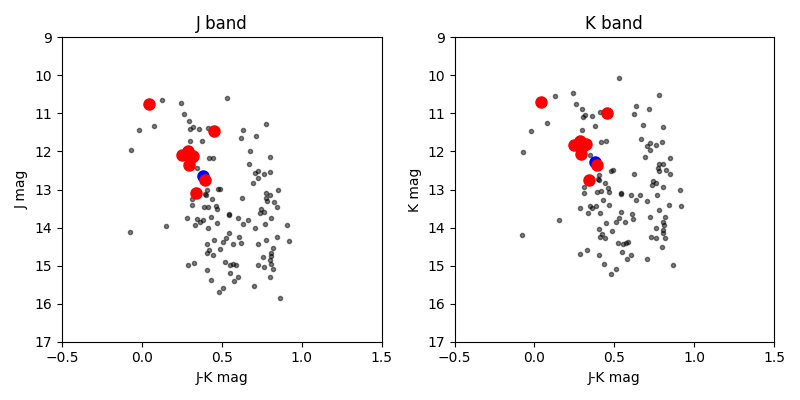

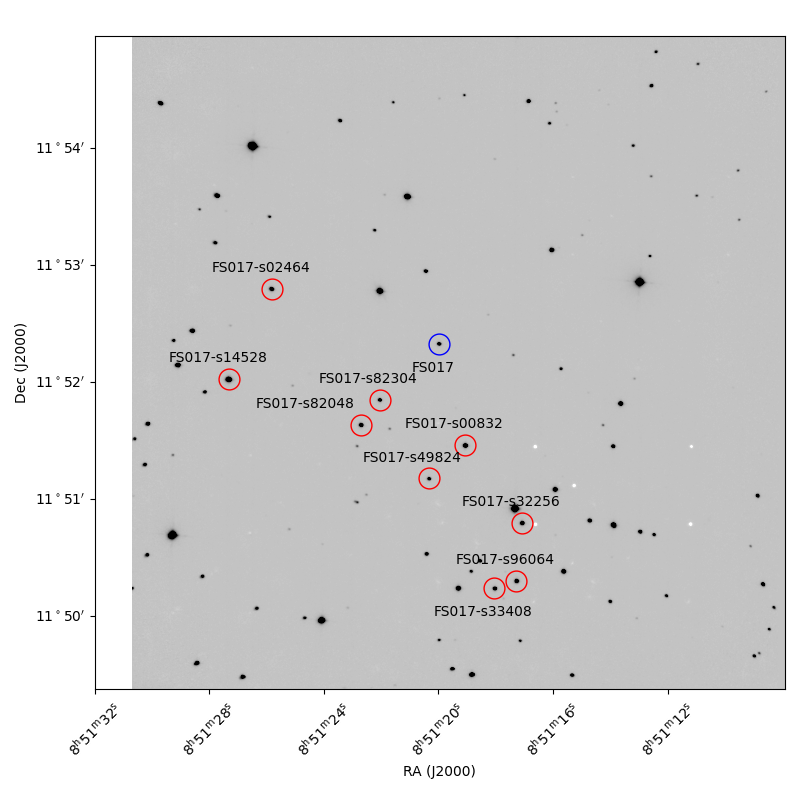

FS017

name	ra	dec	J	err_J	epochs_J	K	err_K	epochs_K	GAIA_id
FS017-s14528	8:51:27.01	11:51:52.58	10.742	0.009	7	10.699	0.005	7	604921202767814528
FS017-s00832	8:51:18.77	11:51:18.71	11.455	0.008	7	11.001	0.003	7	604921129752600832
FS017-s32256	8:51:16.79	11:50:39.02	12.0	0.011	7	11.714	0.006	7	604920756091232256
FS017-s96064	8:51:16.98	11:50:09.44	12.083	0.009	7	11.835	0.005	7	604920721731496064
FS017-s02464	8:51:25.52	11:52:38.83	12.117	0.01	7	11.797	0.007	7	604921271487102464
FS017-s82048	8:51:22.41	11:51:29.24	12.17	0.008	7	11.864	0.003	7	604921168408082048
FS017-s33408	8:51:17.75	11:50:05.60	12.357	0.01	7	12.065	0.006	7	604920756091233408
FS017	8:51:19.69	11:52:10.75	12.655	0.009	7	12.273	0.005	7	604921374566324992
FS017-s82304	8:51:21.76	11:51:42.06	12.76	0.01	7	12.368	0.004	7	604921168408082304
FS017-s49824	8:51:20.04	11:51:01.70	13.084	0.009	7	12.744	0.006	7	604921134048349824

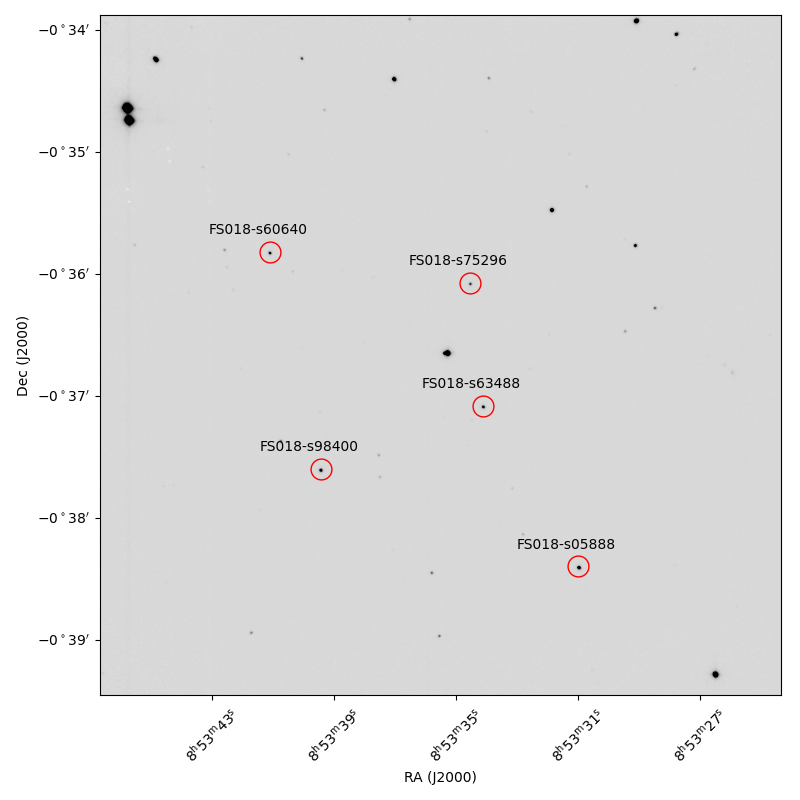

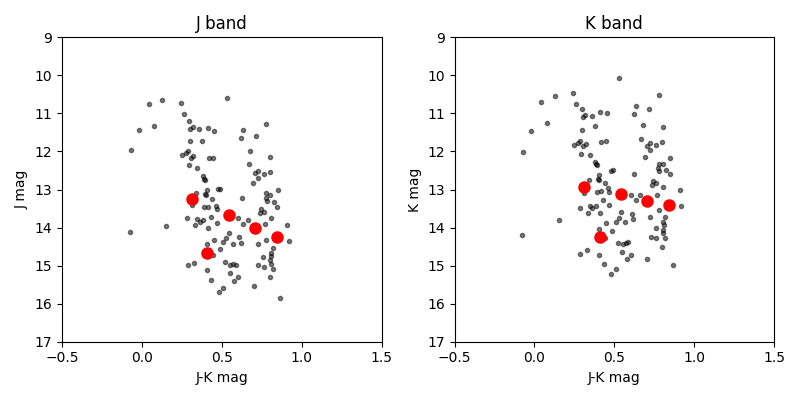

FS018

name	ra	dec	J	err_J	epochs_J	K	err_K	epochs_K	GAIA_id
FS018-s05888	8:53:31.19	-0:38:26.70	13.247	0.007	8	12.934	0.004	8	3074350479674405888
FS018-s98400	8:53:39.64	-0:37:38.82	13.659	0.01	8	13.116	0.009	8	3074350926350998400
FS018-s63488	8:53:34.29	-0:37:07.72	14.0	0.005	8	13.292	0.006	8	3074350891991263488
FS018-s60640	8:53:41.35	-0:35:51.76	14.26	0.01	8	13.416	0.006	8	3074352506898960640
FS018-s75296	8:53:34.75	-0:36:07.33	14.669	0.01	8	14.26	0.008	8	3074353950007975296

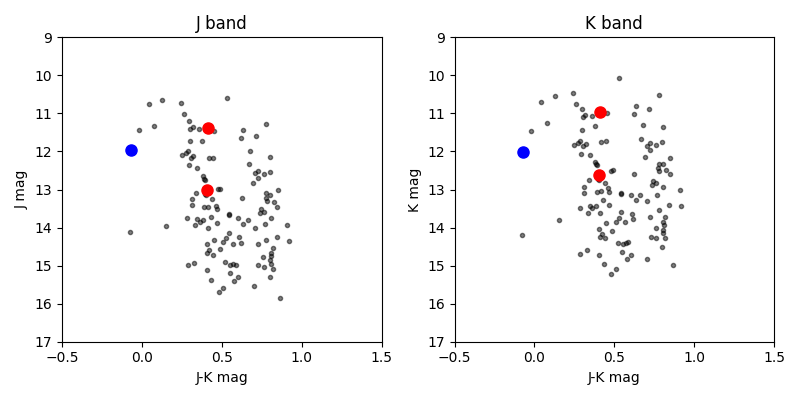

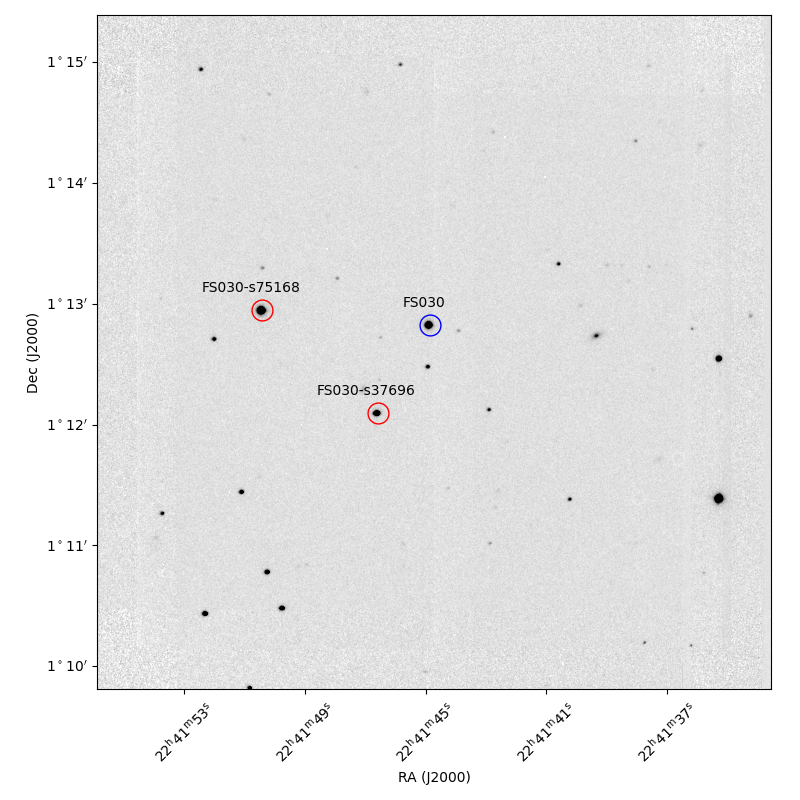

FS030

name	ra	dec	J	err_J	epochs_J	K	err_K	epochs_K	GAIA_id
FS030-s75168	22:41:50.24	1:12:43.25	11.383	0.011	6	10.972	0.007	6	2654543123279175168
FS030	22:41:44.70	1:12:36.37	11.949	0.008	6	12.018	0.008	6	2654543161934285440
FS030-s37696	22:41:46.40	1:11:52.20	13.018	0.007	6	12.613	0.004	6	2654543088919437696

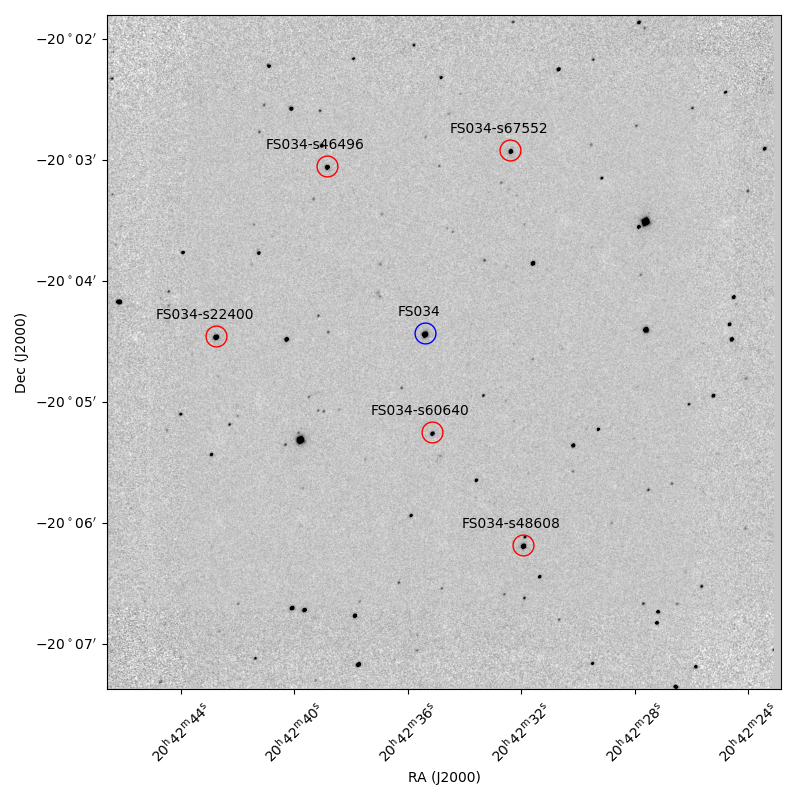

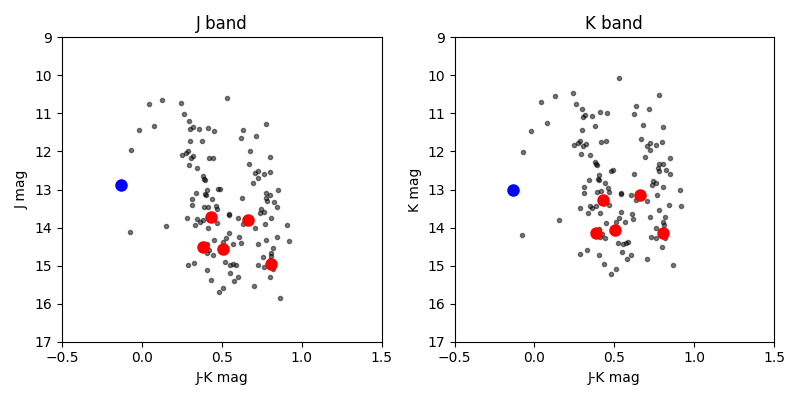

FS034

name	ra	dec	J	err_J	epochs_J	K	err_K	epochs_K	GAIA_id
FS034	20:42:34.75	-20:04:35.93	12.872	0.009	11	13.0	0.009	11	6857939315643803776
FS034-s22400	20:42:42.43	-20:04:38.54	13.715	0.01	9	13.285	0.009	9	6857939624881622400
FS034-s48608	20:42:31.61	-20:06:22.27	13.812	0.009	11	13.149	0.008	11	6857939109486948608
FS034-s46496	20:42:38.52	-20:03:14.20	14.561	0.006	11	14.056	0.006	11	6857942682898346496
FS034-s60640	20:42:34.81	-20:05:26.37	14.948	0.009	10	14.14	0.008	10	6857939208267760640

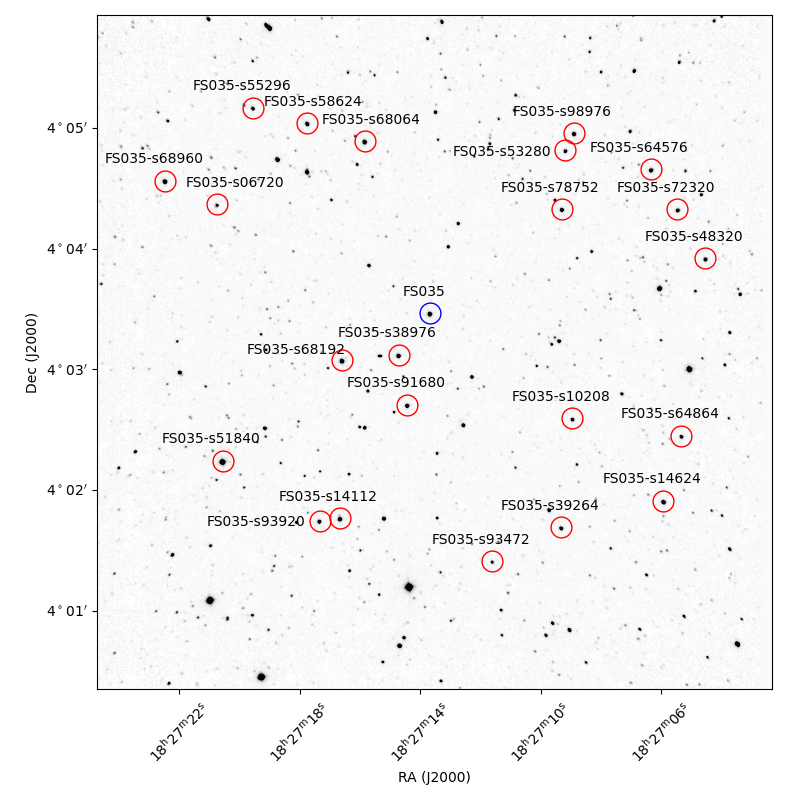

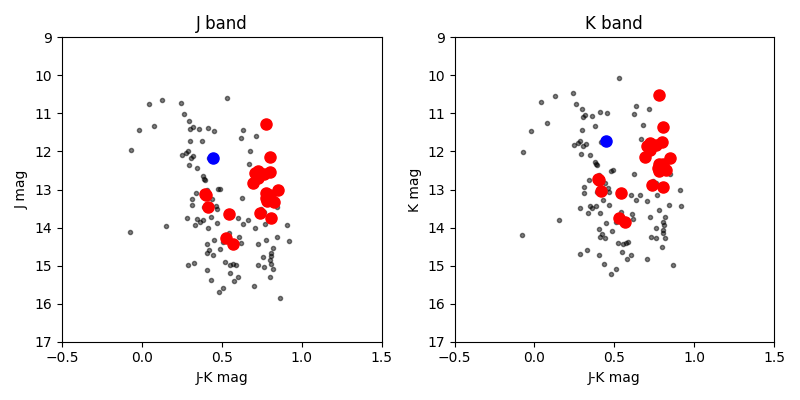

FS035

name	ra	dec	J	err_J	epochs_J	K	err_K	epochs_K	GAIA_id
FS035-s51840	18:27:20.35	4:01:56.29	11.289	0.007	6	10.511	0.008	6	4284122439177651840
FS035-s68192	18:27:16.40	4:02:46.41	12.147	0.008	6	11.344	0.011	6	4284122709739768192
FS035	18:27:13.50	4:03:09.80	12.182	0.007	6	11.734	0.009	6	4284122748415319936
FS035-s14112	18:27:16.46	4:01:27.90	12.513	0.008	6	11.788	0.011	6	4284122370460714112
FS035-s68960	18:27:22.27	4:04:15.46	12.55	0.008	6	11.749	0.011	6	4284128623930568960
FS035-s68064	18:27:15.64	4:04:35.09	12.555	0.008	6	11.847	0.009	6	4284129414204568064
FS035-s38976	18:27:14.54	4:02:49.07	12.604	0.008	6	11.841	0.01	6	4284122679695838976
FS035-s14624	18:27:05.74	4:01:36.46	12.686	0.007	6	11.96	0.011	6	4284122610975914624
FS035-s91680	18:27:14.23	4:02:24.39	12.83	0.008	6	12.135	0.01	6	4284122675379991680
FS035-s58624	18:27:17.55	4:04:44.10	13.023	0.008	6	12.171	0.01	6	4284128692650058624
FS035-s48320	18:27:04.34	4:03:36.90	13.097	0.006	6	12.317	0.01	6	4284123469969848320
FS035-s78752	18:27:09.10	4:04:01.43	13.12	0.008	6	12.723	0.011	6	4284123504329578752
FS035-s93920	18:27:17.15	4:01:26.72	13.143	0.008	6	12.34	0.01	6	4284122473537393920
FS035-s64576	18:27:06.15	4:04:20.90	13.144	0.007	6	12.742	0.01	6	4284123573049064576
FS035-s98976	18:27:08.70	4:04:39.06	13.222	0.008	6	12.446	0.011	6	4284123607408798976
FS035-s39264	18:27:09.13	4:01:23.48	13.29	0.009	6	12.507	0.009	6	4284122537940939264
FS035-s72320	18:27:05.27	4:04:01.24	13.322	0.007	6	12.498	0.009	6	4284123573049272320
FS035-s10208	18:27:08.75	4:02:17.38	13.456	0.007	6	13.04	0.01	6	4284122645336110208
FS035-s64864	18:27:05.15	4:02:08.85	13.61	0.009	6	12.872	0.011	6	4284123366890164864
FS035-s53280	18:27:08.99	4:04:30.61	13.638	0.007	6	13.094	0.01	6	4284123603093153280
FS035-s55296	18:27:19.35	4:04:51.71	13.749	0.008	6	12.941	0.009	6	4284128692650055296
FS035-s06720	18:27:20.54	4:04:03.76	14.264	0.008	6	13.737	0.009	6	4284128623920206720
FS035-s93472	18:27:11.41	4:01:06.61	14.424	0.007	6	13.856	0.007	6	4284122336097993472

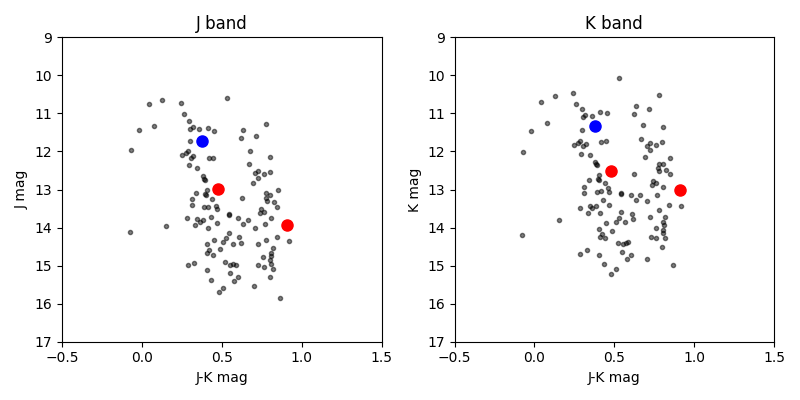

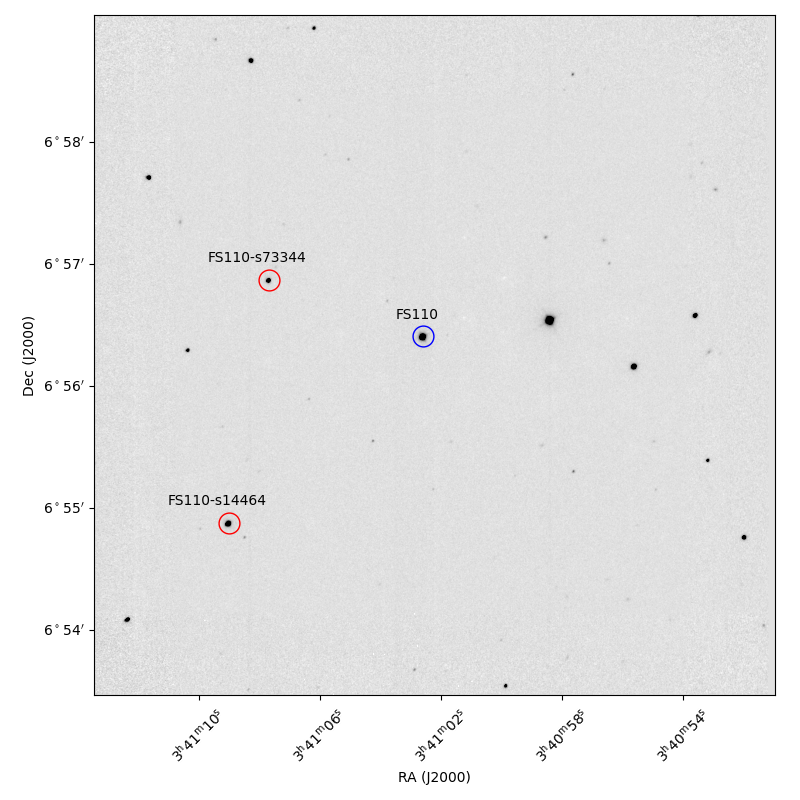

FS110

name	ra	dec	J	err_J	epochs_J	K	err_K	epochs_K	GAIA_id
FS110	3:41:02.22	6:56:16.43	11.715	0.007	11	11.336	0.004	11	3277706323464131968
FS110-s14464	3:41:08.64	6:54:44.94	12.99	0.01	11	12.512	0.006	11	3277659113183614464
FS110-s73344	3:41:07.29	6:56:44.49	13.928	0.006	11	13.018	0.003	11	3277659525500473344

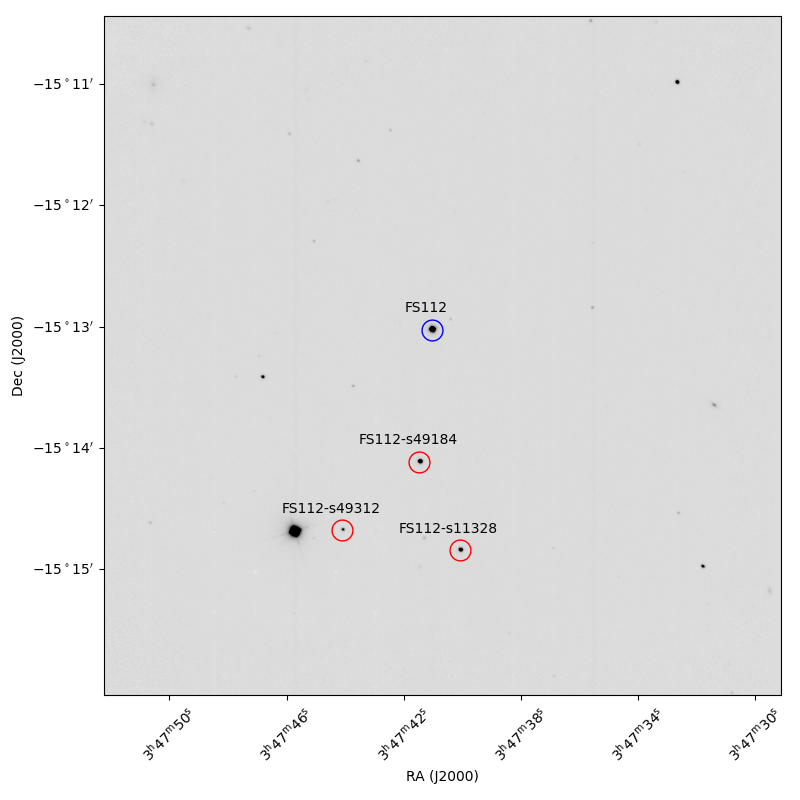

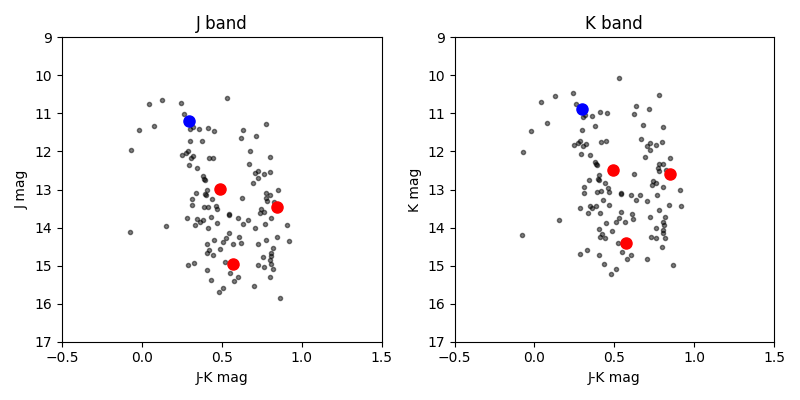

FS112

name	ra	dec	J	err_J	epochs_J	K	err_K	epochs_K	GAIA_id
FS112	3:47:40.72	-15:13:14.59	11.19	0.007	10	10.893	0.005	10	5109048973678255488
FS112-s49184	3:47:41.12	-15:14:19.76	12.98	0.009	10	12.49	0.004	10	5109048698800349184
FS112-s11328	3:47:39.72	-15:15:03.20	13.447	0.008	10	12.6	0.004	10	5109048664440611328
FS112-s49312	3:47:43.76	-15:14:53.51	14.966	0.01	10	14.393	0.006	10	5109048698800349312

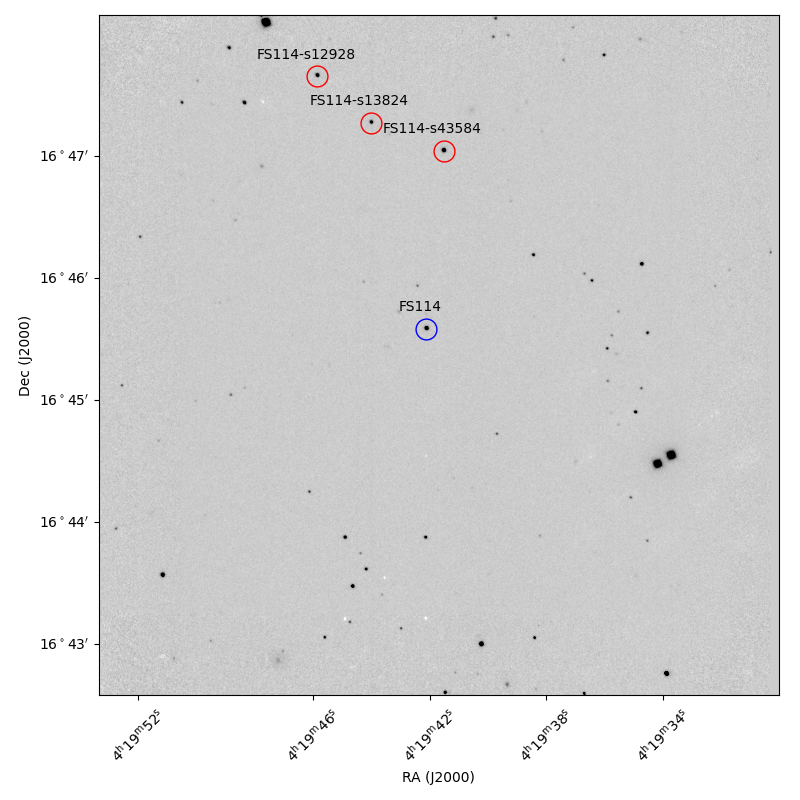

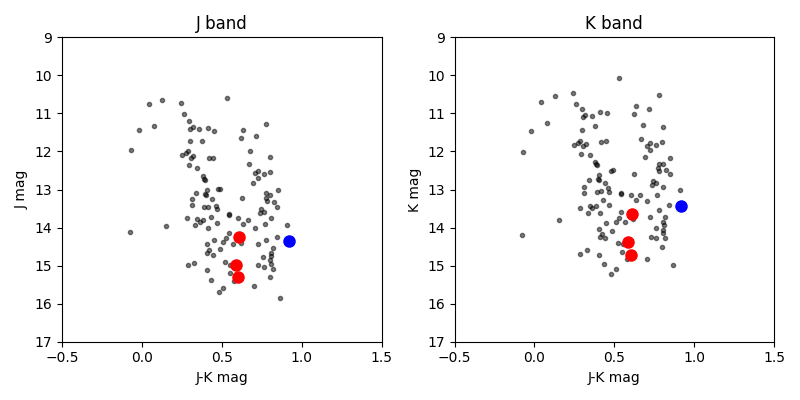

FS114

name	ra	dec	J	err_J	epochs_J	K	err_K	epochs_K	GAIA_id
FS114-s43584	4:19:41.20	16:46:48.45	14.246	0.006	23	13.635	0.004	23	3313880805773043584
FS114	4:19:41.73	16:45:22.05	14.36	0.004	26	13.442	0.003	26	3313879946778443648
FS114-s12928	4:19:45.53	16:47:25.32	14.981	0.008	17	14.392	0.01	17	3313880152938012928
FS114-s13824	4:19:43.68	16:47:02.19	15.311	0.006	22	14.708	0.009	22	3313880152938013824

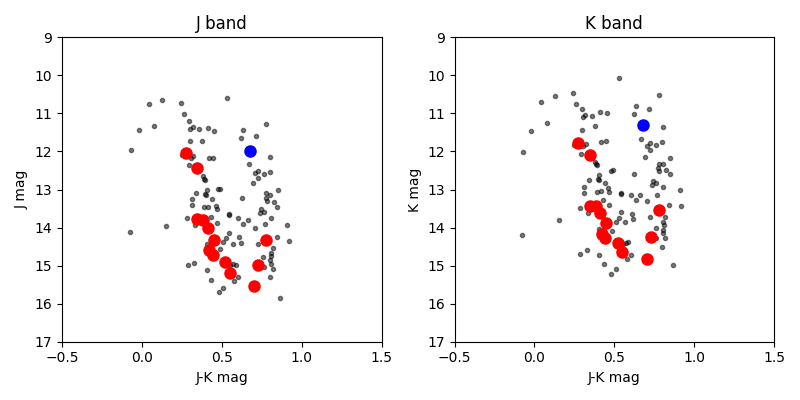

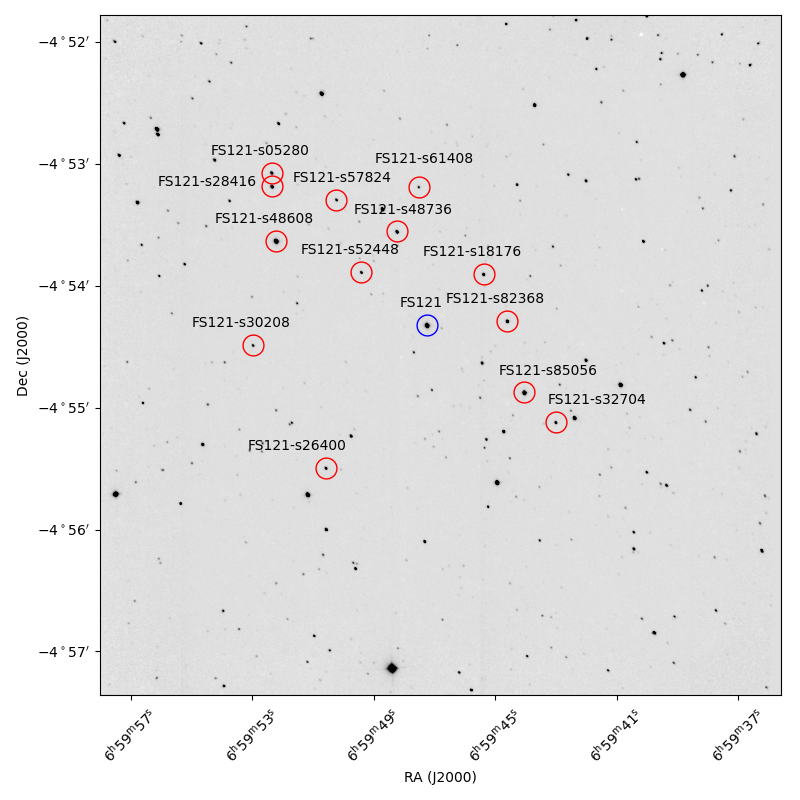

FS121

name	ra	dec	J	err_J	epochs_J	K	err_K	epochs_K	GAIA_id
FS121	6:59:46.77	-4:54:33.67	11.977	0.003	16	11.3	0.003	16	3101625583593341568
FS121-s48608	6:59:51.74	-4:53:52.27	12.051	0.006	16	11.775	0.006	16	3101625686672548608
FS121-s85056	6:59:43.57	-4:55:06.81	12.434	0.006	16	12.087	0.005	16	3101625617953085056
FS121-s28416	6:59:51.88	-4:53:25.54	13.777	0.007	16	13.429	0.009	16	3101625716732828416
FS121-s82368	6:59:44.13	-4:54:31.69	13.811	0.004	16	13.426	0.005	16	3101625617953082368
FS121-s48736	6:59:47.77	-4:53:47.64	14.015	0.005	16	13.604	0.006	16	3101625751092548736
FS121-s18176	6:59:44.92	-4:54:08.63	14.323	0.005	16	13.543	0.006	16	3101625652312818176
FS121-s05280	6:59:51.89	-4:53:18.68	14.328	0.009	16	13.877	0.009	16	3101625785452305280
FS121-s32704	6:59:42.54	-4:55:21.41	14.581	0.006	16	14.159	0.006	16	3101602145952232704
FS121-s26400	6:59:50.11	-4:55:43.84	14.721	0.008	16	14.277	0.005	16	3101613793903526400
FS121-s52448	6:59:48.94	-4:54:07.64	14.917	0.004	16	14.396	0.009	16	3101625686672552448
FS121-s57824	6:59:49.76	-4:53:32.07	14.986	0.007	16	14.259	0.009	16	3101625751092557824
FS121-s30208	6:59:52.50	-4:54:43.50	15.184	0.005	16	14.633	0.009	16	3101613935642030208
FS121-s61408	6:59:47.05	-4:53:25.76	15.538	0.007	16	14.835	0.011	16	3101625751092561408

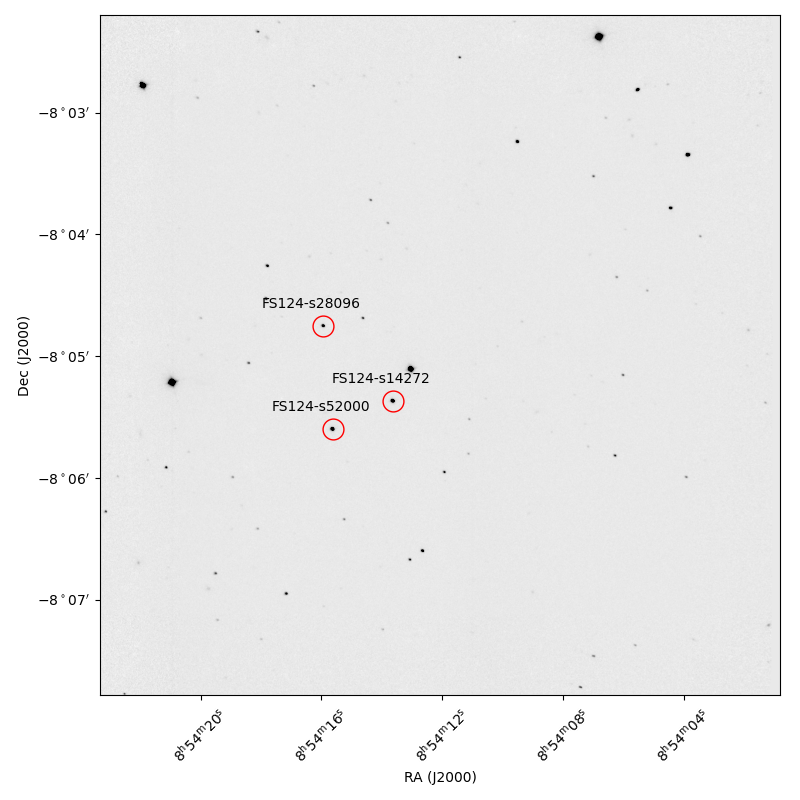

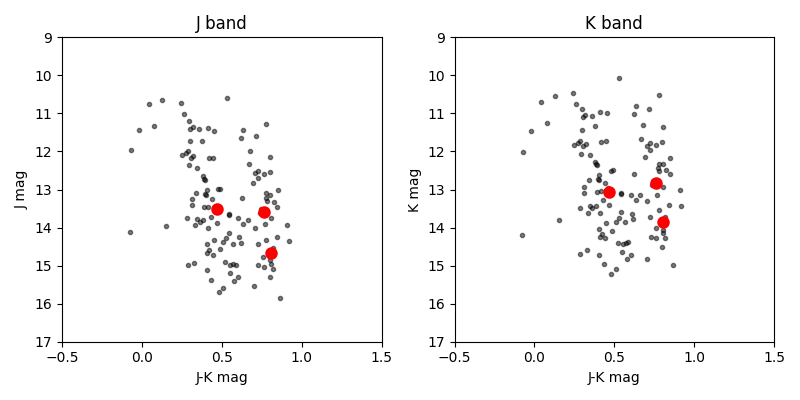

FS124

name	ra	dec	J	err_J	epochs_J	K	err_K	epochs_K	GAIA_id
FS124-s14272	8:54:13.83	-8:05:27.00	13.524	0.007	14	13.056	0.005	14	5756746672027014272
FS124-s52000	8:54:15.83	-8:05:41.04	13.584	0.008	14	12.82	0.005	14	5756746706386752000
FS124-s28096	8:54:16.12	-8:04:49.83	14.666	0.005	14	13.86	0.004	14	5756746775106228096

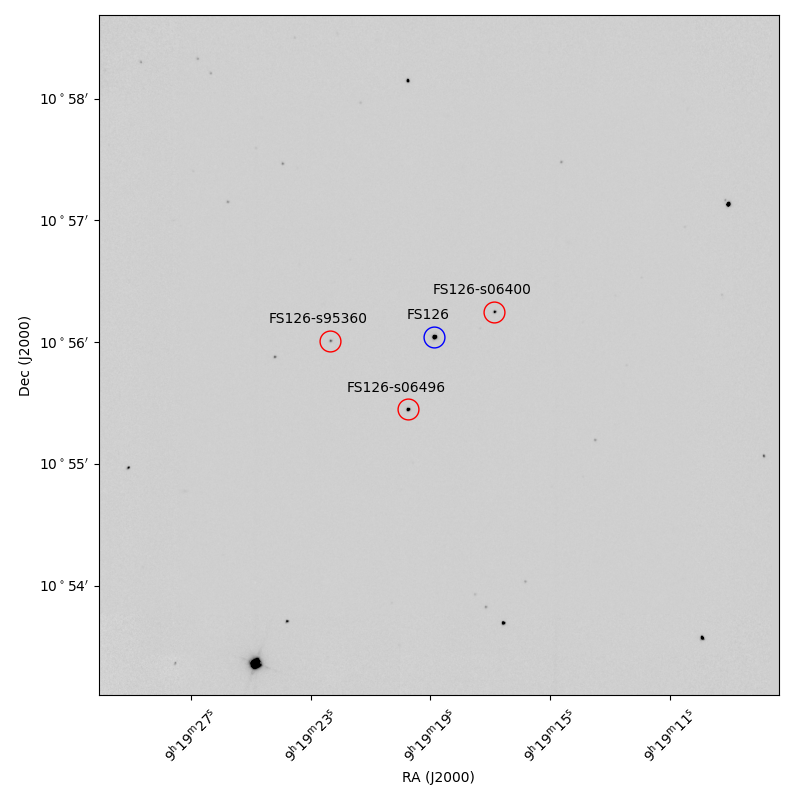

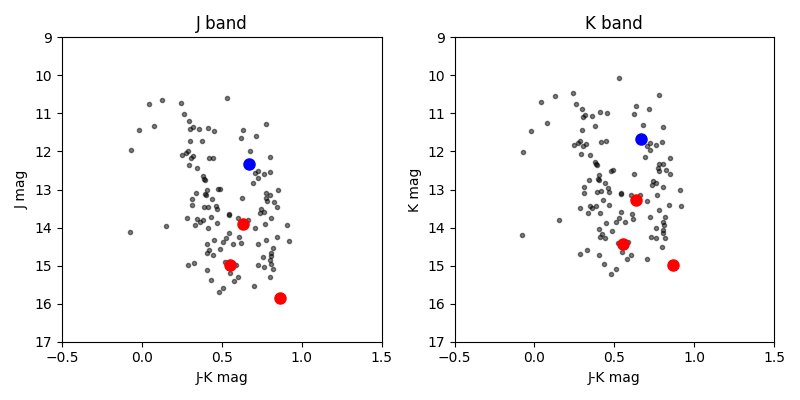

FS126

name	ra	dec	J	err_J	epochs_J	K	err_K	epochs_K	GAIA_id
FS126	9:19:18.75	10:55:51.10	12.33	0.009	9	11.662	0.006	9	592615193750958464
FS126-s06496	9:19:19.62	10:55:15.38	13.901	0.004	9	13.268	0.005	9	592615086376506496
FS126-s06400	9:19:16.73	10:56:03.41	14.993	0.011	9	14.441	0.009	9	592615258175206400
FS126-s95360	9:19:22.20	10:55:49.09	15.854	0.01	9	14.988	0.01	9	592615193751295360

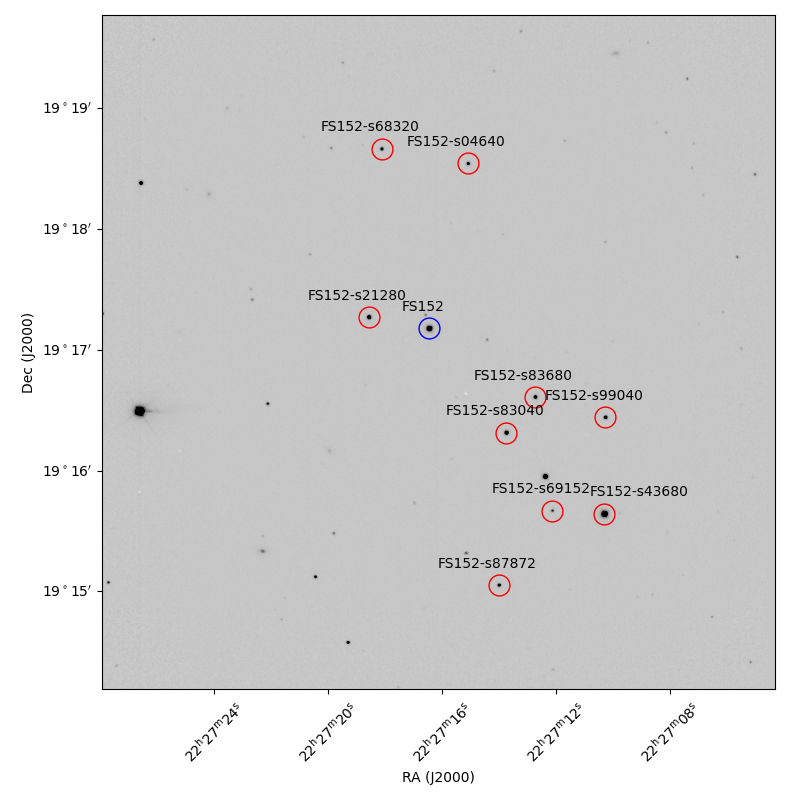

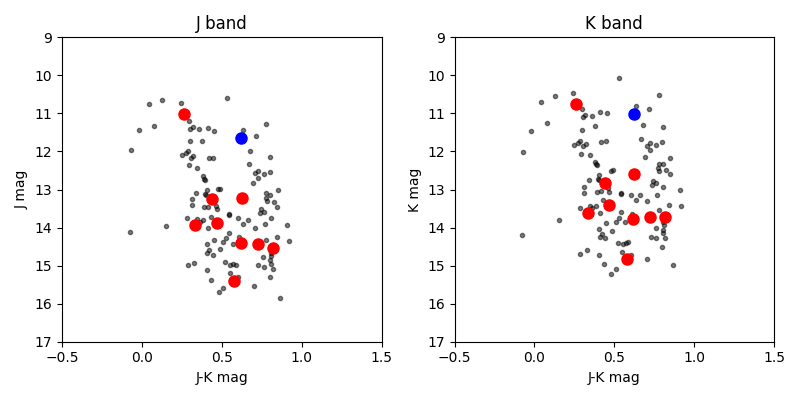

FS152

name	ra	dec	J	err_J	epochs_J	K	err_K	epochs_K	GAIA_id
FS152-s43680	22:27:10.01	19:15:23.11	11.017	0.006	11	10.756	0.006	11	1777401846705943680
FS152	22:27:16.14	19:16:55.41	11.639	0.004	11	11.017	0.007	11	1777402018504634496
FS152-s21280	22:27:18.26	19:17:00.86	13.218	0.005	11	12.592	0.008	11	1777402022799921280
FS152-s83040	22:27:13.43	19:16:03.40	13.262	0.005	11	12.82	0.008	11	1777401988440183040
FS152-s83680	22:27:12.41	19:16:21.06	13.872	0.004	11	13.404	0.005	11	1777401988440183680
FS152-s99040	22:27:09.95	19:16:11.06	13.945	0.008	11	13.61	0.007	11	1777402091519399040
FS152-s87872	22:27:13.69	19:14:47.74	14.395	0.01	11	13.776	0.011	11	1777401816641487872
FS152-s68320	22:27:17.80	19:18:24.51	14.442	0.005	11	13.718	0.007	11	1777403702132168320
FS152-s04640	22:27:14.77	19:18:17.29	14.531	0.006	11	13.713	0.006	11	1777403706427104640
FS152-s69152	22:27:11.83	19:15:24.69	15.392	0.009	11	14.814	0.009	11	1777401881065969152

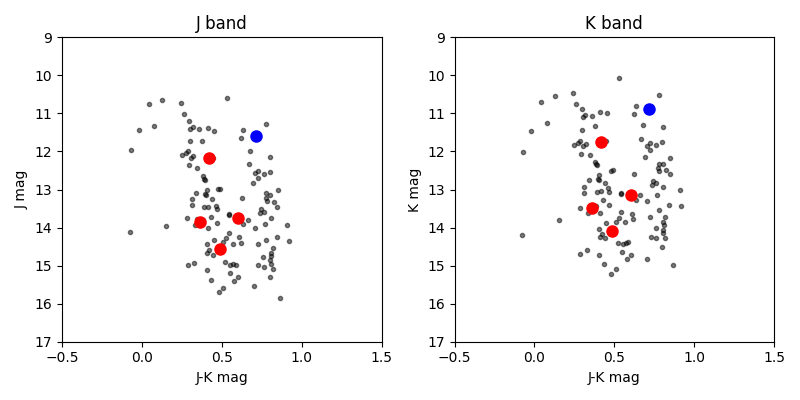

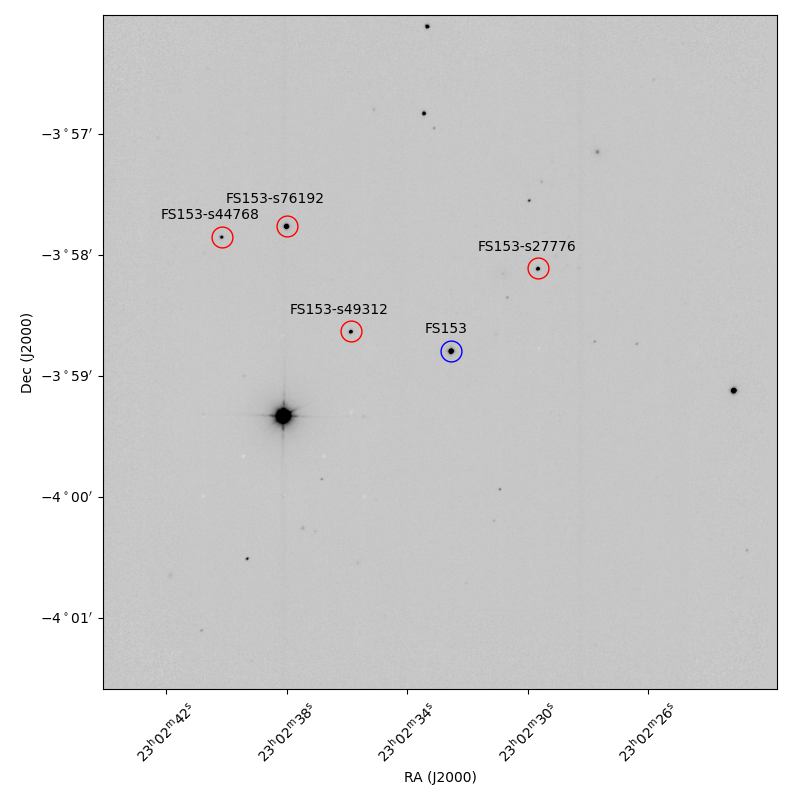

FS153

name	ra	dec	J	err_J	epochs_J	K	err_K	epochs_K	GAIA_id
FS153	23:02:32.08	-3:58:53.03	11.59	0.005	13	10.874	0.006	13	2636398540016611200
FS153-s76192	23:02:37.53	-3:57:51.46	12.18	0.006	13	11.763	0.006	13	2636398677455576192
FS153-s49312	23:02:35.40	-3:58:43.55	13.74	0.005	13	13.137	0.006	13	2636398574376349312
FS153-s27776	23:02:29.20	-3:58:12.29	13.841	0.008	13	13.48	0.008	13	2636398604440827776
FS153-s44768	23:02:39.68	-3:57:56.67	14.566	0.006	13	14.079	0.009	13	2636395752582544768
